Hi-Force has launched newly designed single and double acting aluminium cylinders

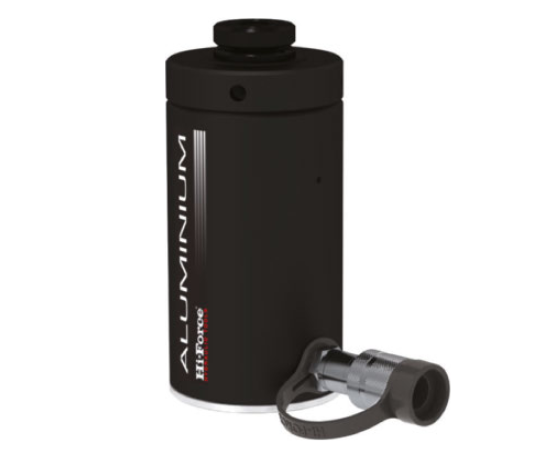

The HFA single acting failsafe lock ring aluminium range offers the benefit of significantly reduced weight compared to conventional steel cylinders as well as combining all the versatility and efficiency of hydraulic power with the safety of mechanical load support. Ideally suited for applications requiring sustained load holding for extended periods, such as bridge support work, the HFA cylinders feature a single acting, spring assisted return piston threaded throughout its stroke length, to suit the threaded mechanical load holding lock ring.

The HRA double acting high tonnage aluminium cylinder has been specifically designed to offer heavy duty lifting solutions for applications where weight and portability are of prime importance. The double acting design of the cylinders offers higher work output with improved performance and efficiency.

Key features of both models include:

  • Maximum working pressure 700 bar
  • Capacities from 32 to 110 tonnes
  • Stroke lengths from 51 to 305 mm
  • Anti-extrusion seals for improved performance at high pressures
  • Steel base plate fitted as standard

For more information on these lightweight aluminium cylinders click here or for more details contact us today.
